Ontora

01Why it exists

A fasting glucose result is GLUC at one lab, FASTING BLOOD SUGAR, SER/PLAS at the next and L-002 at a third. Each is correct inside its own building and unreadable outside it. The result cannot follow the patient to another institution, national reporting counts one measurement three different ways, and a test that already happened gets ordered again because nobody downstream can tell. FHIR can carry that result anywhere, but only once it is coded as LOINC.

Ontora does that coding at scale. Records arrive over REST or Kafka. An embedding model proposes LOINC candidates, and every candidate is checked against a real FHIR terminology server. A reviewer decides, Ontora remembers the decision for that clinic, and publishes it as a standard FHIR ConceptMap.

The mapping is not the valuable part; a lookup table can map. What matters is that the system has been measured against hidden ground truth, so it knows which of its own answers to trust.

localhost:4200/queue

02A confidence score you can check

The system was run over 660 evaluation records: 600 from three simulated clinics and 60 genuine de-identified hospital labs from MIMIC-IV. Each carries a ground-truth LOINC code that is never exposed through the API and never shown to the model. The 655 that have one are scored; the other five belong to lab items the 91-concept subset cannot honestly code.

Top-1 precision per confidence band, scored against hidden ground truth.

A cosine similarity is not a probability

The calibration chart shows it plainly. Expected calibration error is 17.6% over equal-count deciles, or 18.2% with equal-width bins. The shipped HIGH cut-off of 0.85 is deliberately conservative: the lowest cut-off that still holds 95% precision is 0.772, and the cost of every setting is tabulated by a script rather than typed by hand.

03Where it fails, on purpose

The same numbers, split by what each source sends:

That last row is the argument for the confidence spread. L-002 carries no meaning, so no model can recover it, and Ontora does not pretend otherwise: it scores those records LOW and sends them to a person. Once a person decides what L-002 means at St. Mary’s, the mapping memory applies that decision to every later L-002 from St. Mary’s without asking the model again, and the result still names the reviewer who made the original call as its author.

04Architecture

One record’s journey

1. A clinic sends GLUC · 5.4 mmol/L · Patient/0042, over REST or Kafka.
2. The core asks whether this clinic’s GLUC has been decided before.
3. If it has, the mapping memory applies 1558-6 straight away and skips to the last step.
4. Otherwise the matcher returns three candidates with their similarity.
5. Every candidate is checked with $validate-code against HAPI FHIR, then gets a confidence band, a specimen check and a UCUM unit check.
6. The reviewer’s queue updates live over server-sent events.
7. The reviewer approves 1558-6; it is validated again at approval and remembered for this clinic.
8. A FHIR Observation, Provenance and AuditEvent are stored. The reviewer’s identity comes from the JWT, never from the request body.

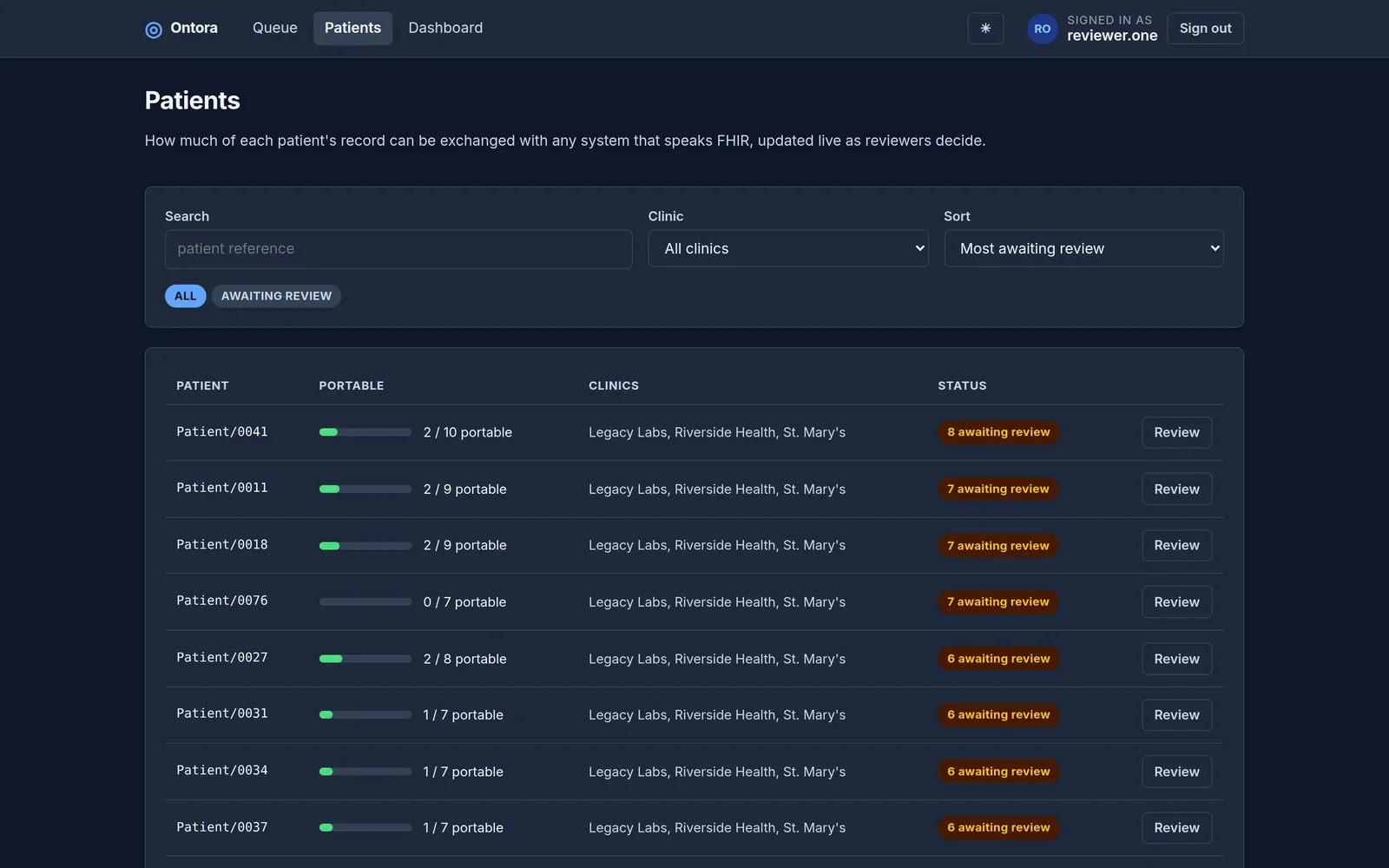

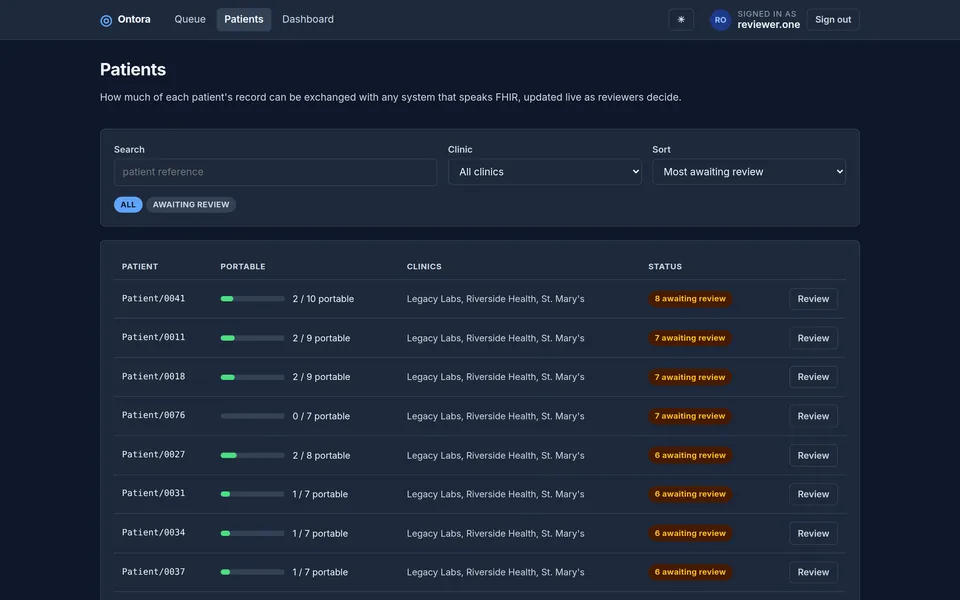

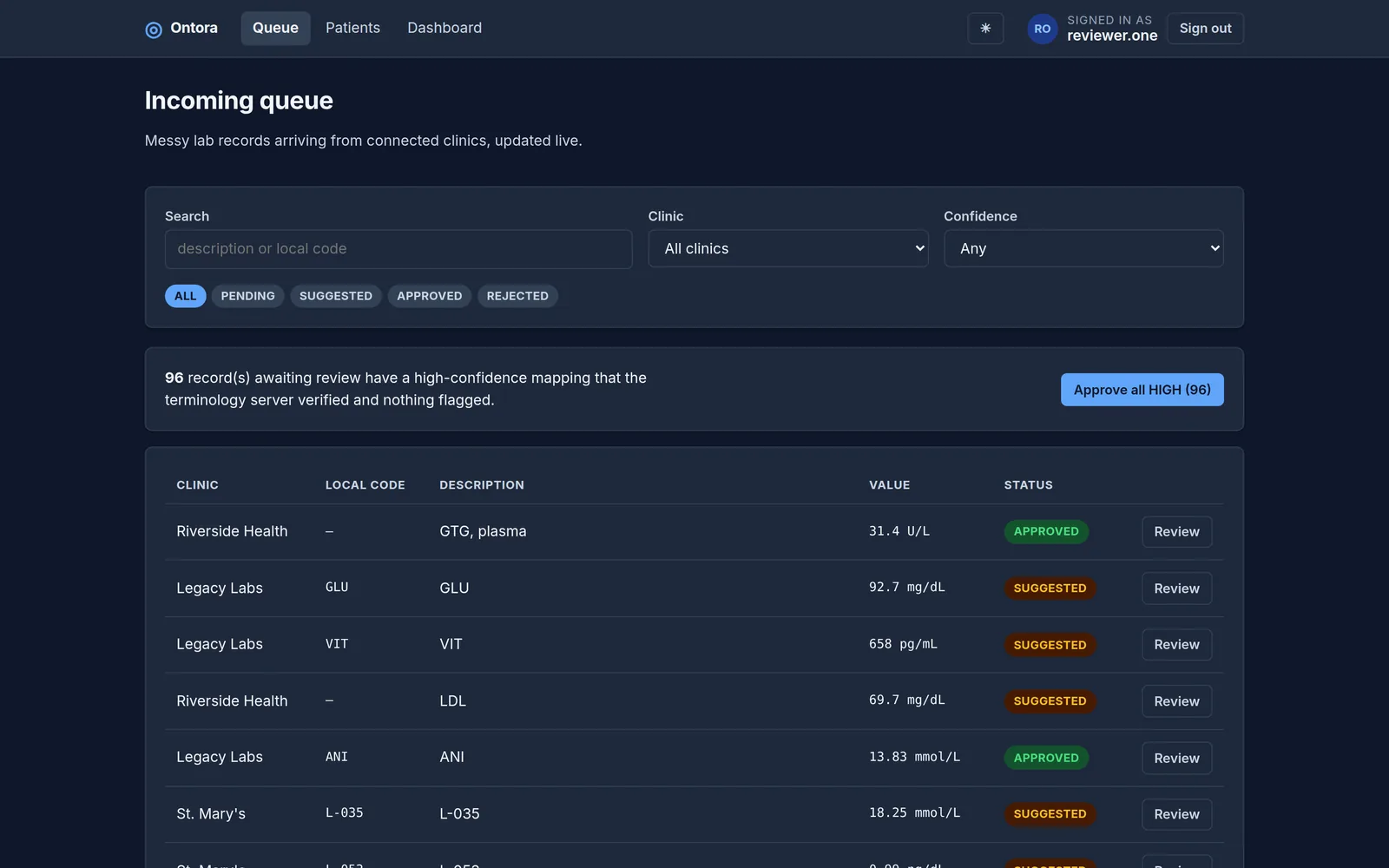

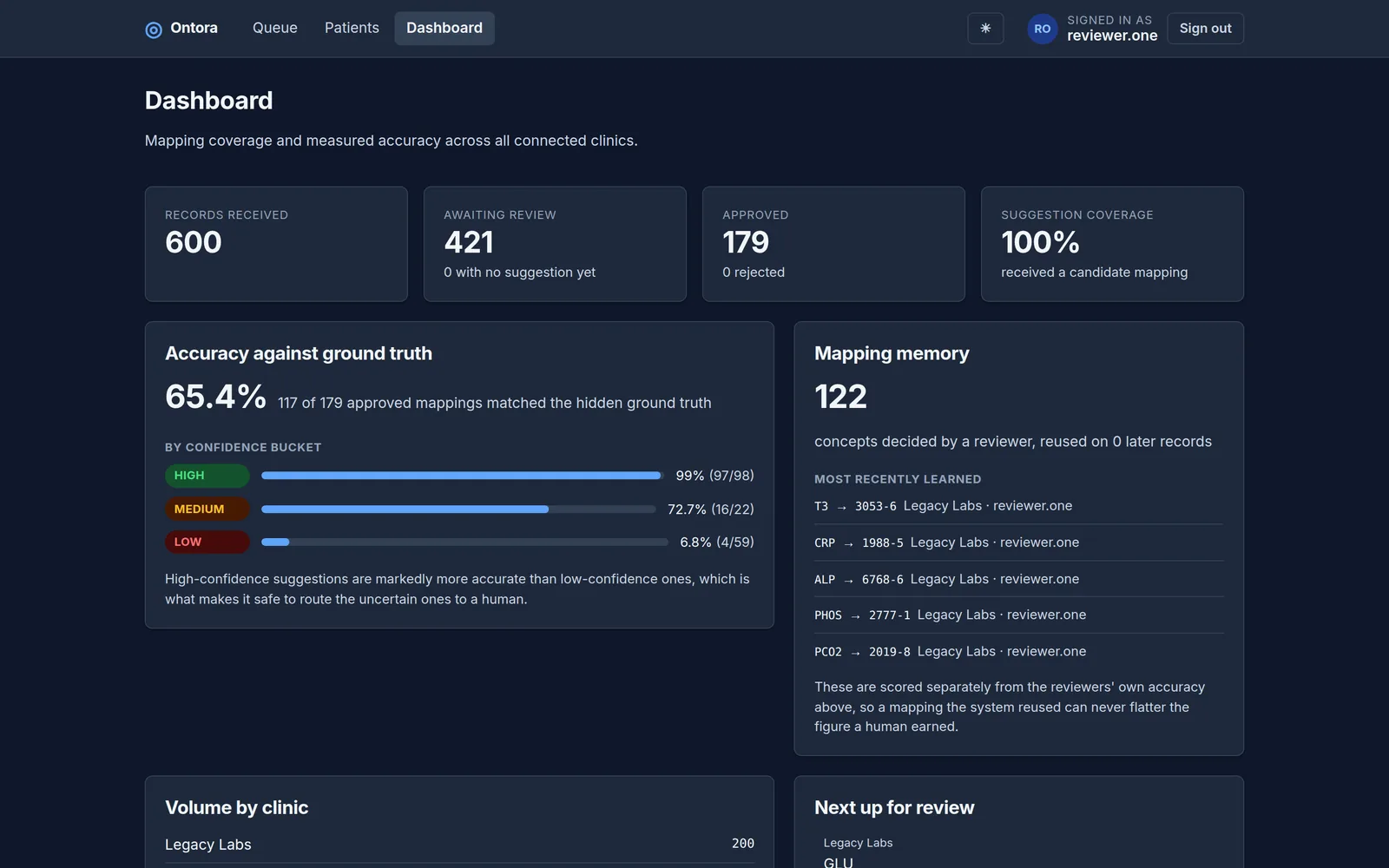

05The product

Amber means not yet portable, green means portable. Nothing on these screens describes a patient; they describe whether a result can be read somewhere else.

06Engineering decisions

Each of these had a real alternative.

• 01 · MODEL CHOICE

  MiniLM over SapBERT

  SapBERT ranks 1.7 points better on top-1, but it is about five times slower, adds 420 MB, and makes the HIGH band less precise. That band carries the safety argument, so MiniLM stays the default.

• 02 · TRANSACTIONS

  Publishing is its own action

  Publishing the ConceptMap is not part of approval. Otherwise a network call to HAPI sits inside the approval transaction, and approvals fail whenever the terminology server is down. The cost is one manual step.

• 03 · CHECKS

  Warn, never block

  A candidate with a unit warning is right 2.5% of the time, but the check is a heuristic over free text, and a heuristic that blocks loses records silently. Flagged candidates are kept out of bulk approval, so a person always sees them.

• 04 · SIGNALS

  The matcher never sees the axes

  It embeds names only; specimen and UCUM checks run afterwards in Kotlin. Two independent signals are useful precisely when they disagree, and folding them into one score would hide that.

• 05 · TENANCY

  Memory is per clinic

  GLUC at one lab is a statement about that lab. Mappings are unique per clinic and source code, published under per-clinic code systems, and never shared across clinics.

• 06 · SECURITY

  Duties split by the server

  Admin and reviewer roles never overlap: an admin gets a 403 on approve, a reviewer a 403 on the audit trail. Both are gated in the security filter chain, because method security throws where the catch-all handler would turn a 403 into a 500.

07Tests

JUnit 5 with Testcontainers and REST Assured for the core, against real PostgreSQL and Kafka containers; Vitest for the Angular UI; pytest with the real model for the matcher. Every FHIR resource Ontora produces (Observation, Provenance, AuditEvent, ConceptMap and the rest) is validated offline against the official R4 profiles, so a malformed resource fails the build instead of reaching an exchange partner. GitHub Actions runs the three suites as independent jobs.

08Stated limits, and what’s next

The clinic records are synthetic; the hospital labels come from the MIMIC-IV Clinical Database Demo (PhysioNet, ODbL v1.0). LOINC® is a registered trademark of Regenstrief Institute, Inc.
